01RESEARCH / DEMONSTRATED
The frontier is physical.
Peer-reviewed studies show that their own optimized artifacts changed outcomes on named detectors under defined cameras, views, distances, and garments. None tested NULLRADIAL.
NULLRADIAL / AJILL Systems Meta Materials Division
RELEASE 00 / reservations open
N/R A.00 / 2026
THE CLAIM WE ARE HERE TO EARN:
AI CANNOT SEE IT.
NULLRADIAL is the privacy-material venture inside AJILL Systems' Meta Materials Division. We earn that claim one locked field, named system, camera, threshold, condition, and production batch at a time—and publish the boundary.
TARGET / named-system non-detectionDEMAND / preorder onlyFUNCTION / locked Test Card only$0 today / no charge
01 / Founding clothing system
THE CLOTHING NEVER LEFT.
IT MOVES FIRST.
Seven product pages, men’s and women’s fits where the body changes the cut, live allocation ceilings, and one shared cart. Every active public skin can move across the system without rebuilding the storefront.

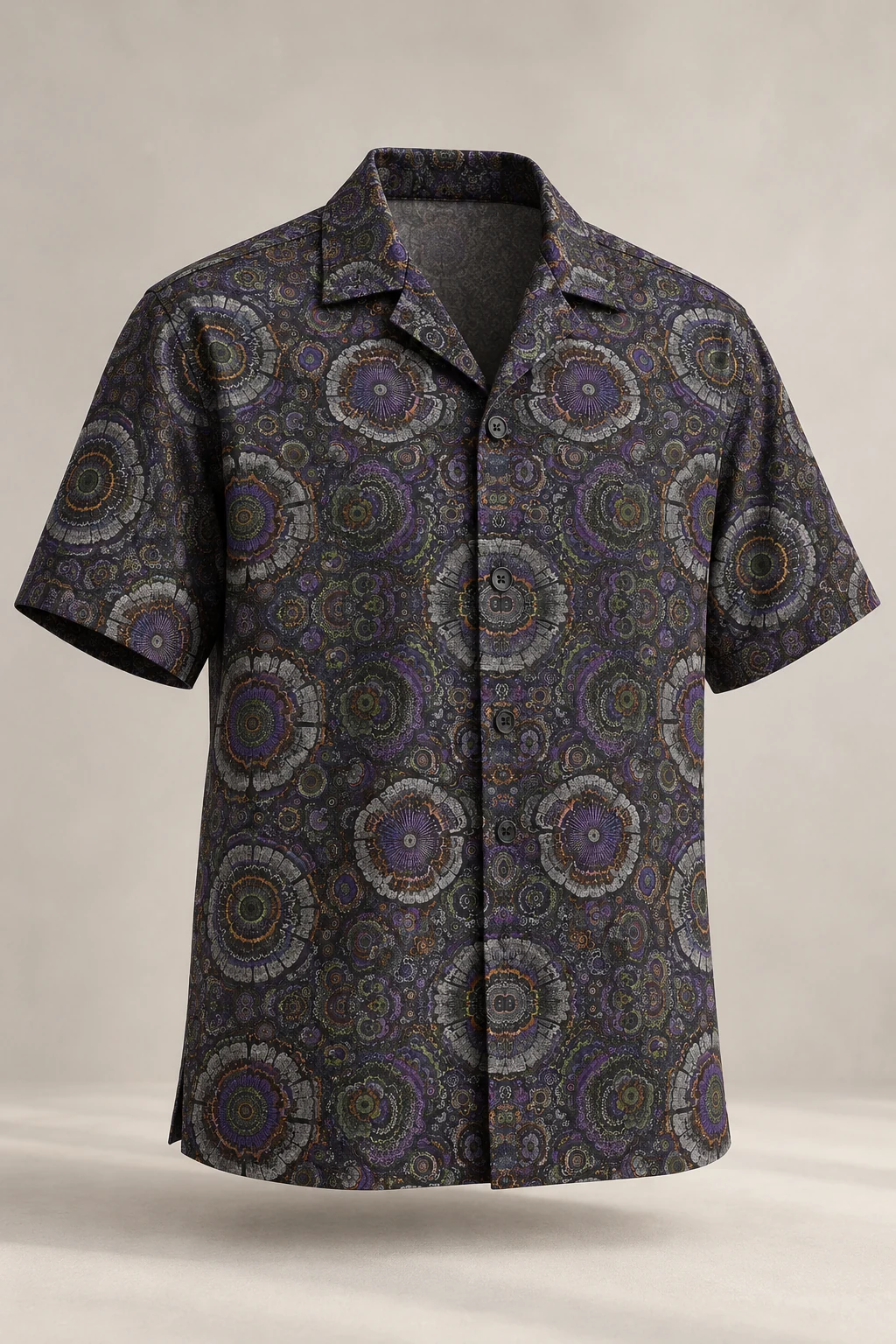

NR–W01 / BODYNR–W01Mixed-field campaign concept / not a physical sampleFIELD shirt
Two purpose-built fits. One uninterrupted radial field. Pattern-matched through the collar, placket, and sleeves so the idea survives the cut.

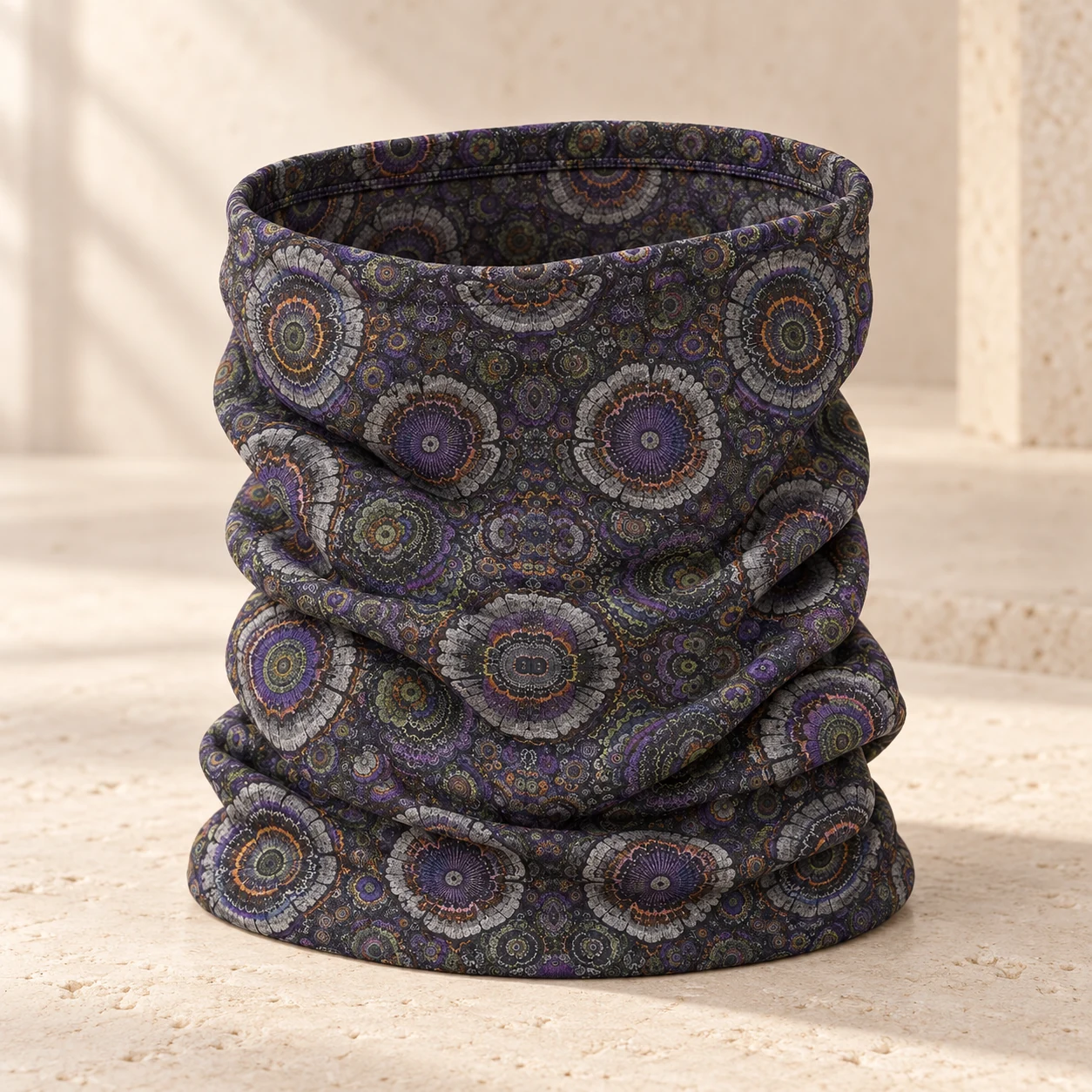

NR–W02 / BODYNR–W02Mixed-field campaign concept / not a physical sampleVECTOR gaiter
A continuous stretch-mapped surface built to stay visually alive through rotation, compression, and motion, with two circumference profiles.

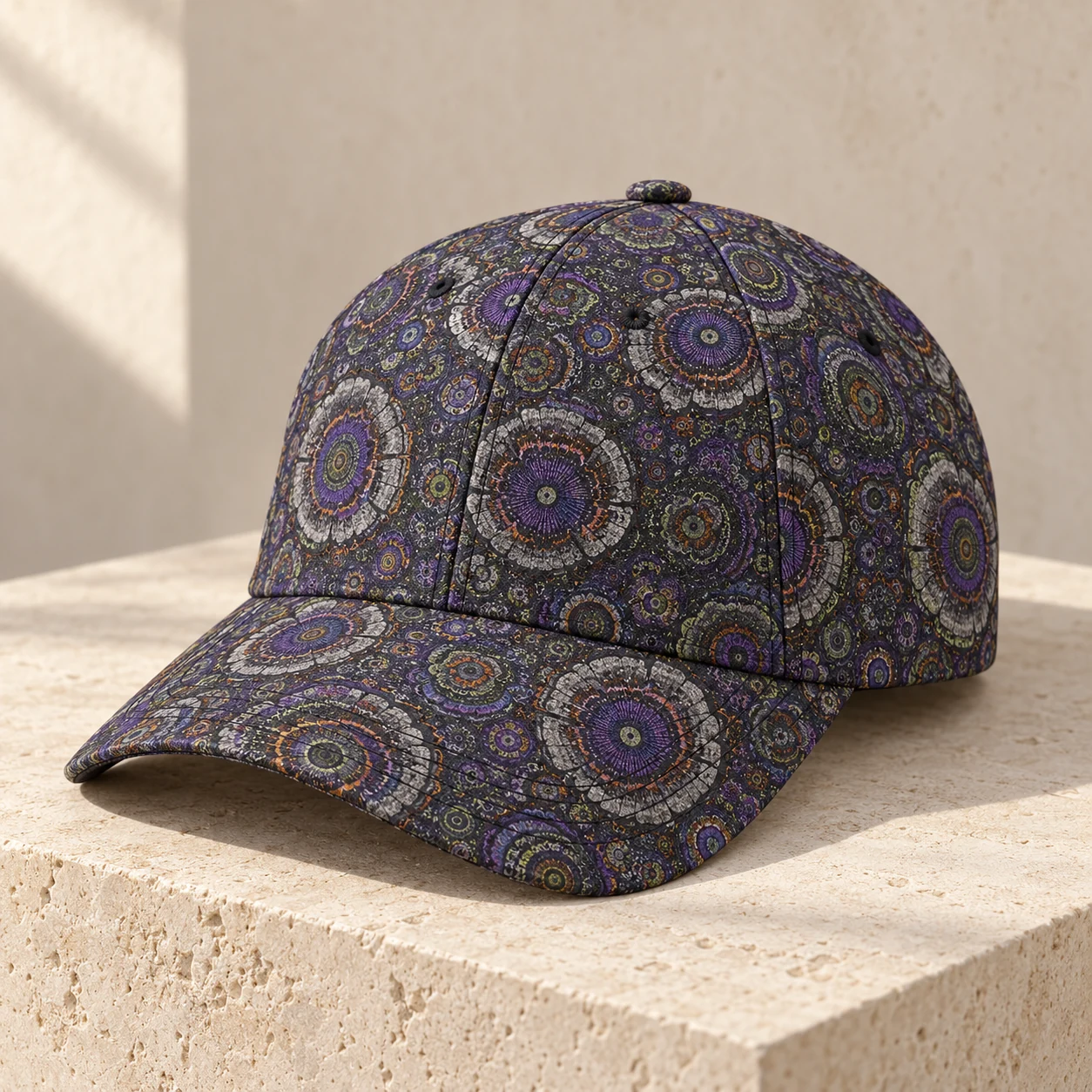

NR–W03 / BODYNR–W03Mixed-field campaign concept / not a physical sampleINDEX cap
Six mapped panels, two crown profiles, and a field resolved around the silhouette instead of printed over it.

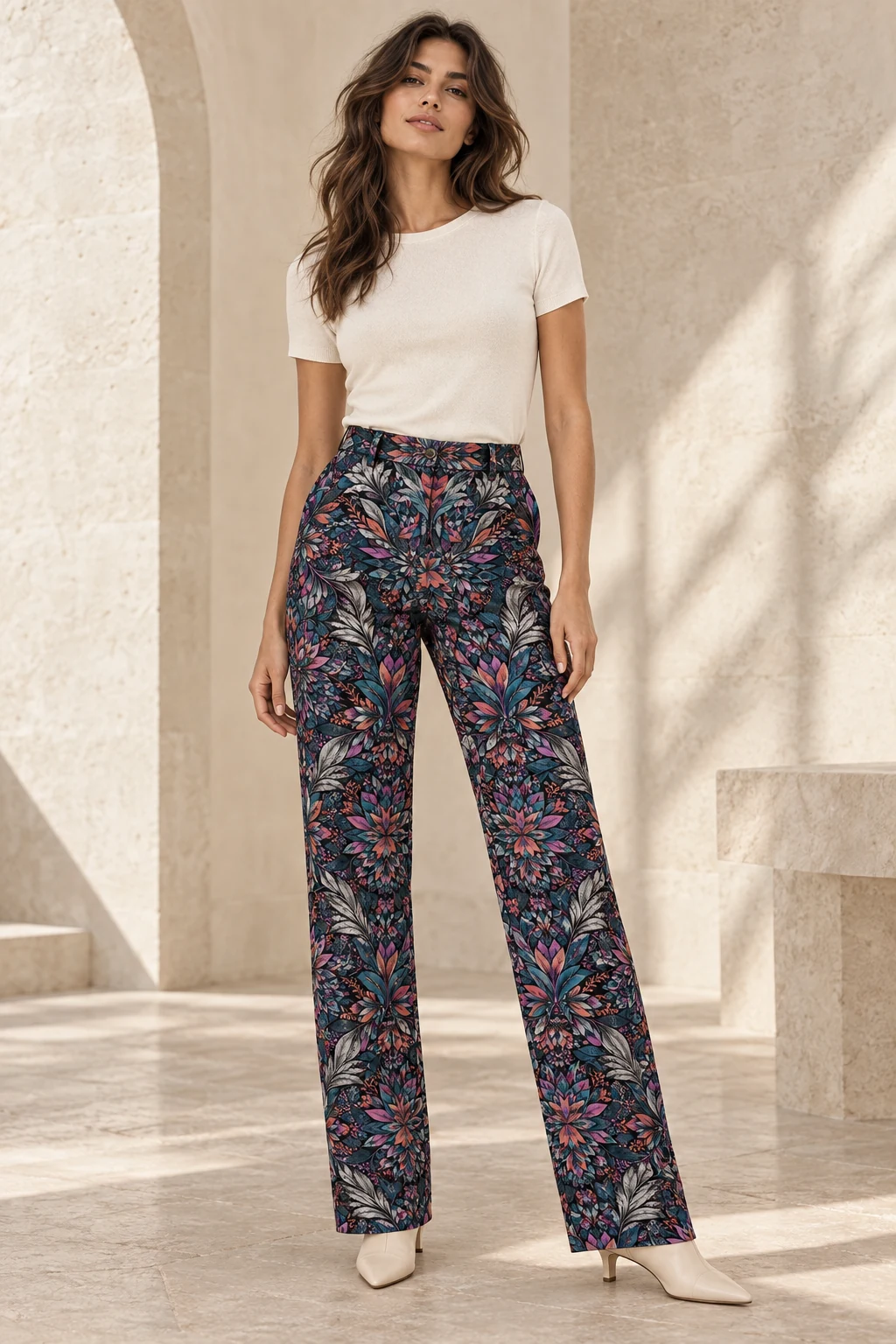

NR–W04 / BODYNR–W04Mixed-field campaign concept / not a physical sampleSTRIDE pant
Independent men’s and women’s blocks tune the field across standing, seated, and walking geometry, with articulated knees and a shaped seat.

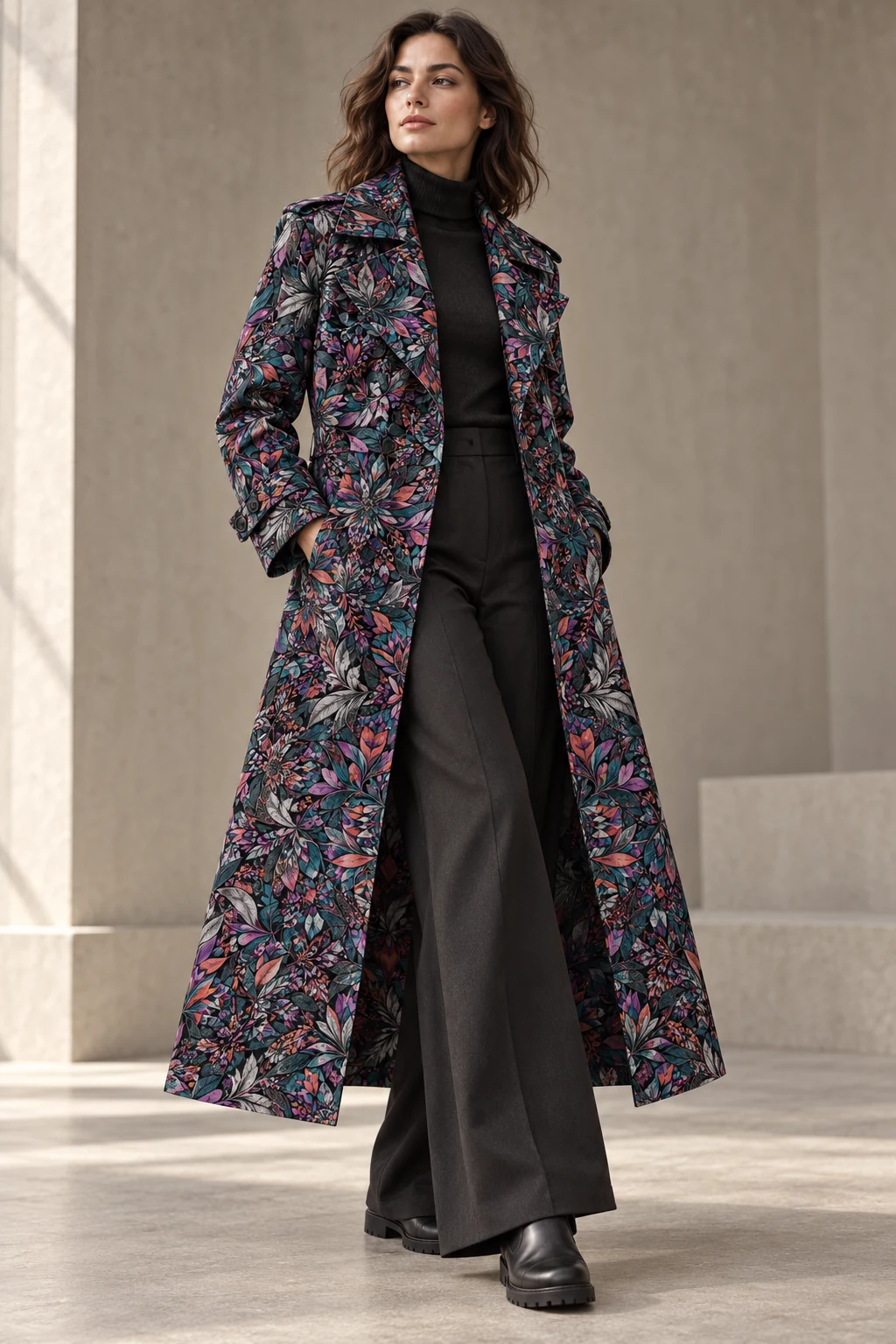

NR–W05 / WEATHERNR–W05Mixed-field campaign concept / not a physical sampleSHELL trench
A mapped longline rain trench built around wind, folds, storm architecture, separate men’s and women’s blocks, and an optional conductive-liner program.

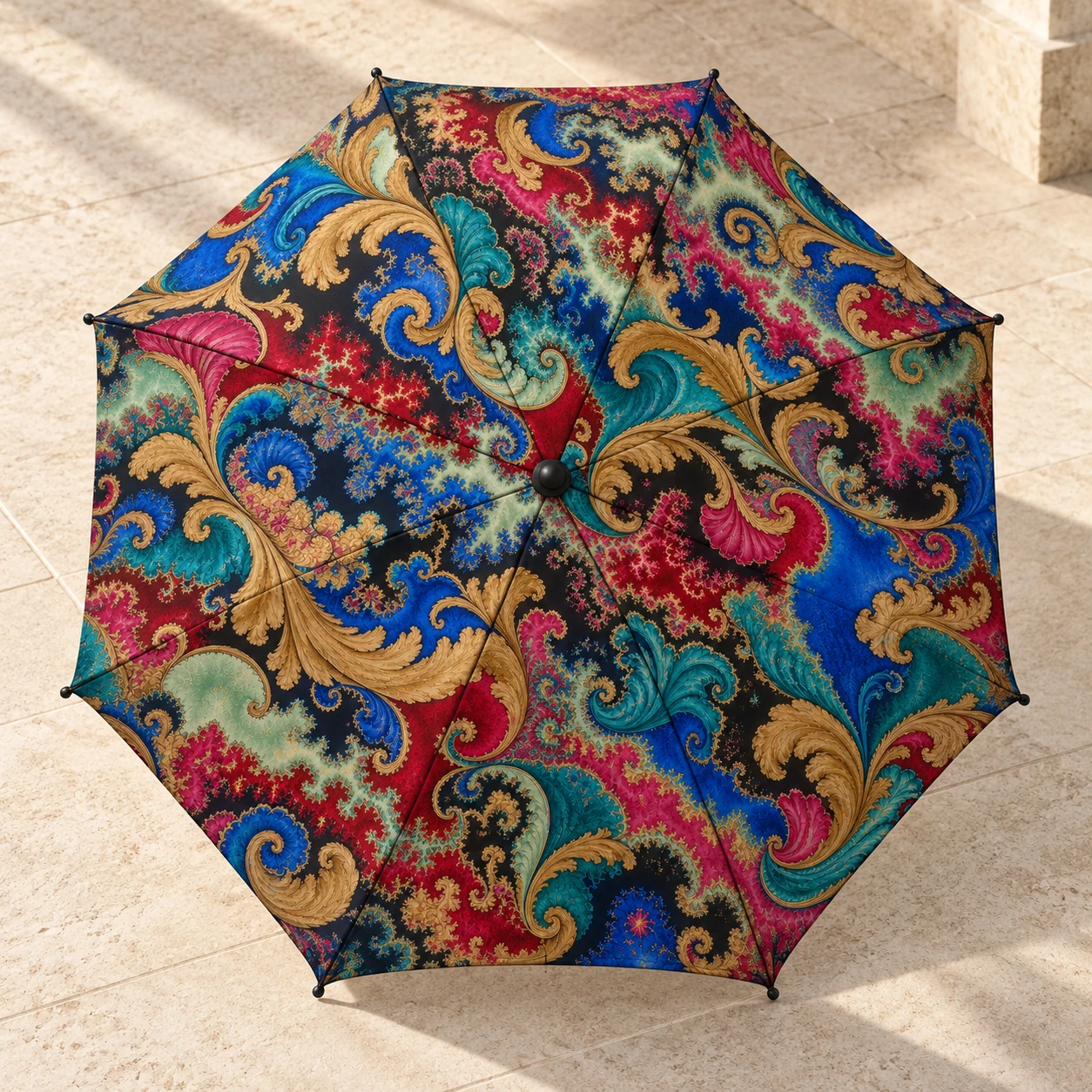

NR–O01 / WEATHERNR–O01Mixed-field campaign concept / not a physical sampleCANOPY umbrella
Eight registered panels transform a closed object into a full radial composition in one motion, engineered around ribs, seams, and wind.

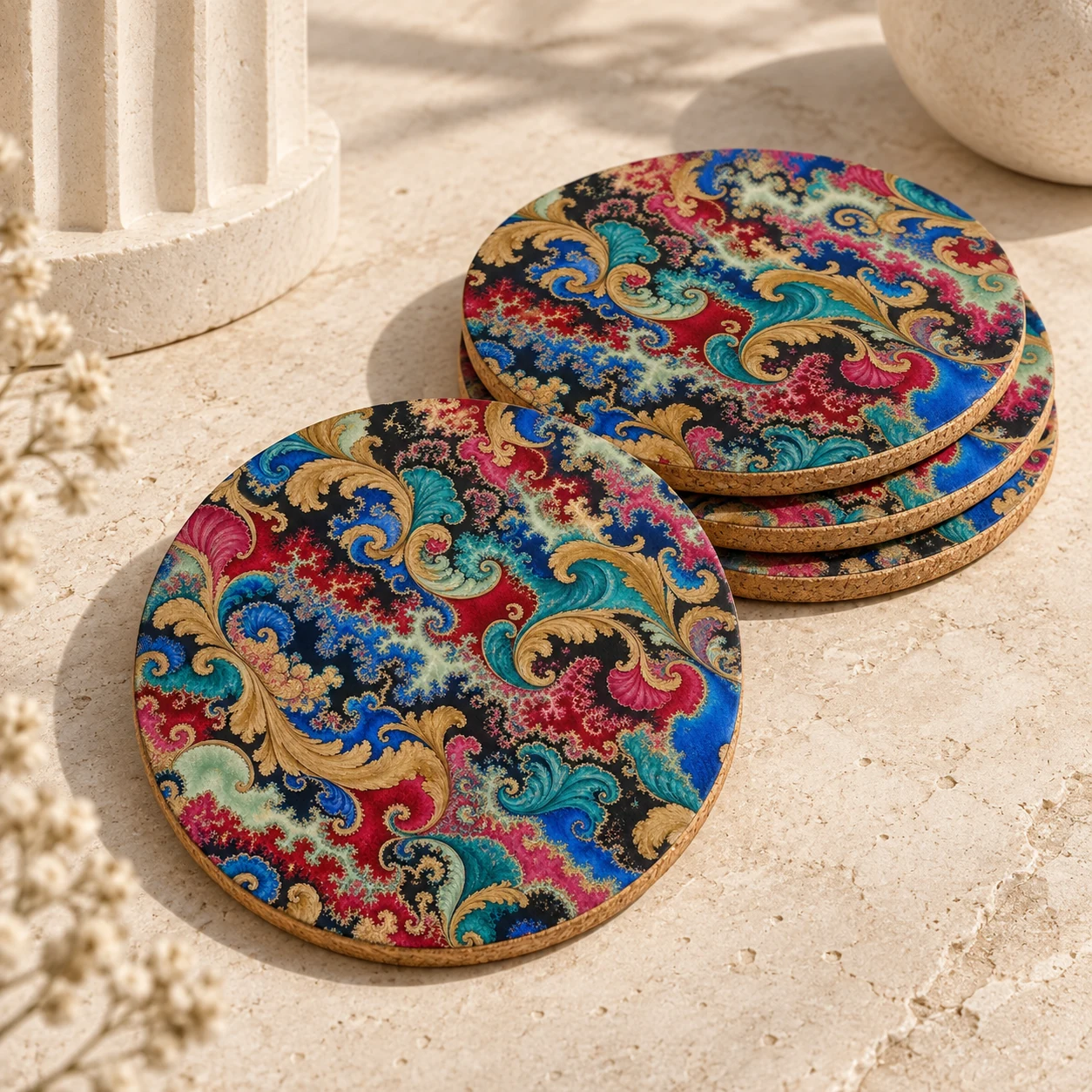

NR–O02 / OBJECTNR–O02Mixed-field campaign concept / not a physical sampleORBIT coaster
A numbered set of sealed field studies that brings the founding visual language into everyday space without diluting the master artwork.
RELEASE 00 / PREORDER SIGNAL
DEC 2026 standard apparel + accessories target
JAN 2027 rain systems target
FEB 2027 earliest silver qualification target
CURRENT GATE / supplier award + funded sample. No charge today; specifications, final price, and timing are reconfirmed before payment.Release 00 / Your preorder is a demand signal
CHOOSE THE PRODUCT.
CHOOSE WHAT BECOMES REAL.
Build a one-per-category cart across shirt, gaiter, hat, pants, raincoat, umbrella, and coaster. Each product + fit + size cell closes at 1,000. Smart pairings remain active, and no card or charge is taken today.
00 / Privacy metamaterials
WE ARE A PRIVACY COMPANY.
WE DEVELOP METAMATERIALS.
Privacy should not end at the screen. NULLRADIAL engineers surfaces for two audiences: unmistakable design for the human eye and controlled uncertainty for named machine-vision systems. Conductive and optical material functions remain separately measured, separately versioned, and separately claimed.
00.1 / From frontier to product
THE POSSIBILITY IS PUBLISHED.
OUR PRODUCT MUST EARN THE SENTENCE.
Published work demonstrated conditional physical feasibility on named systems. NULLRADIAL turns that frontier into a repeatable product system: original field masters, product-specific mappings, material qualification, and a traceable proof engine behind every result.
02NULLRADIAL R1 / EXPLORATORY
Our starting line is locked.
R1 executed 56 model/image runs across four scenes. Ember Halo’s pooled candidate-minus-block-control estimate was +0.0778; the audited neutral-scene estimate was −0.0031 and its detector-family directions split.
03S4 REGISTERED MASTER / NOT QUALIFIED
They saw every new field.
On two synthetic scenes, both pinned detector builds retained person detection for every S4 registered-master unit. No candidate qualified. The result is published because failure is part of the proof engine.
04PHYSICAL PRODUCT / OPEN
Reality decides the claim.
The next run moves onto printed cloth and cast film across folds, seams, gloss, curvature, light, distance, motion, wash, and weather. What survives earns the label.
EVERY RESULT IS SPECIFIC TO THE NAMED ARTWORK / MATERIAL / MODEL / BUILD / CAMERA / CONDITIONS
02 / Manifest-driven skin system
ONE ENGINE.
A LIVING CANDIDATE FIELD.
Every registered master enters the same product preview, preorder, custody, and evidence structure. New texture assets can arrive without rebuilding the storefront.
01.1 / S2 release candidates
EARN THE SENTENCE.
NAME THE SYSTEM.
Three new ornate fields are exact-repeat locked and screened at three scales. Broken Halo earned first position for a physical swatch. The screen is a priority signal—not real-world proof.
NR–RC–07 / DIGITAL SCREEN / OPEN
Lattice Bloom
Ornament can enter the lab.
NR–RC–08 / DIGITAL SCREEN / SIGNAL OBSERVED
Broken Halo
The next swatch earns its place.
NR–RC–09 / DIGITAL SCREEN / PRIORITY
Prism Canopy
Botanical. Architectural. Unsettled.
152 inferences / 2 families / 4 scenes / zero physical claimsEnter the S2 research system
One visual language.
Different physical behavior.
03 / Product architecture
ONE SIGNAL.
FOUR SURFACE LINES.
Clothing is the first interface. Weather systems, carried objects, and vehicle film extend the same locked-pattern platform across the surfaces people live with every day.
01
NR / BODY
Field / Wear
Put the field on. Separate men’s and women’s blocks keep the signal alive across motion, drape, seams, and distance.
FIELD shirt · VECTOR gaiter · INDEX cap · STRIDE pant
Wear the first release02
NR / WEATHER
Field / Weather
Make the elements part of the system. Exterior fields expand through water, wind, panel geometry, seams, and open-canopy motion.
SHELL rain trench · CANOPY umbrella
Make weather visible03
NR / OBJECT
Field / Object
Make the everyday unmistakable. The same locked masters resolve onto carried surfaces, domestic scale, and material studies.
ORBIT coaster · carried surface studies
Own the visual language04
NR / MOTION
Field / Motion
Scale the signal. Cast-film studies move the field from garment scale to vehicle architecture and compound curvature.
vehicle panel proof · installer-qualified full wrap
Request a motion study03.1 / Category scale
THIS IS BIGGER
THAN APPAREL.
Clothing is the first interface. Vehicle film, weather systems, conductive layers, architectural surfaces, and controlled perception programs extend the same platform across a much larger surface economy.
Open the company thesis04 / The proof engine
WE DON'T BORROW PROOF.
WE BUILD IT.
Published research demonstrated conditional physical feasibility on named systems. Our registered-master S4 pilot then delivered the harder answer: all three new S4 fields remained detectable on both pinned builds, and no candidate qualified. The failed gate is public. Now optimization must beat locked controls before any surface reaches cloth, film, folds, seams, cameras, distance, weather, or motion.
Open the S4 failure report01HashLock artwork + weights
02BenchmarkControls + named builds
03PhysicalPrint + camera matrix
04EarnShip what survives
05 / Material × signal spectrum
ONE SURFACE.
SEPARATE PHYSICS.
Computer vision, infrared, and RF do not bend to the same mechanism. We test every layer independently and combine only what survives. Different physics. One standard: named evidence.
| Signal band | Material / mechanism | Evidence object | Current result | Released status | Access |
|---|---|---|---|---|---|
| VISIBLE / RGB | Release 00 pattern masters | Digital composite · 2 named detector families · 56 inferences | R1 exploratory | Digital baseline complete | PUBLIC |
| VISIBLE / RGB | Printed textile + cast vinyl | Production print, fold, seam, curvature, angle, distance + camera matrix | Next validation run | Physical qualification | PUBLIC |
| NIR / SWIR | Release 00 materials | Named near- / short-wave infrared sensor study | Program roadmap | Named-sensor scope | PROTOCOL |
| THERMAL IR | Separate thermal architecture required | Thermal construction + named detector suite | Separate architecture | Protocol roadmap | PROTOCOL |
| RF / 2–5 GHz | Silverjersey conductive-textile candidate | Supplier reports >42 dB · 83% cotton / 17% silver thread · public method absent | Supplier report / unverified | Garment qualification queue | PUBLIC DEV |
| RF / 0.2–14 GHz | Bremen RS silver-coated nylon candidate | Supplier reports approximately 60 dB · sub-band table · public method absent | Supplier report / unverified | System qualification queue | PROTOCOL |
| RF / FINISHED SYSTEM | Garment, rain shell, object liner | Lot + seams + openings + stretch + moisture + movement + wash cycles | Production test matrix | Release gate | PROTOCOL |
RGB: Published adversarial-texture performance does not transfer automatically to NULLRADIAL derivatives.
RF: ASTM D4935 covers planar material from 30 MHz–1.5 GHz; higher-frequency and finished-product work requires a named calibrated method.
Silverjersey supplier data Bremen RS supplier data ASTM D4935Independent RF context / NULLRADIAL release ladder
A FREQUENCY CLAIM
NEEDS A FREQUENCY TEST.
Silver-conductive textiles are a credible engineering route—not a magic word. Independent research establishes the problem. Only exact-lot and finished-object testing can establish a NULLRADIAL result.
Record yarn, construction, mass, thickness, silver form, supplier lot, custody, and bidirectional resistance. ‘Nano-silver’ requires independent particle-scale evidence; conductivity alone is not shielding.
Use the active ASTM D4935-18(2026) planar-material method within its 30 MHz–1.5 GHz scope. Test multiple coupons and directions; publish the curve, minimum, conditioning, and uncertainty.
Use IEEE 2715-2023 to select and document a suitable coaxial, waveguide, free-space, or near-field method outside that scope. Never extend a supplier range or fill an unmeasured gap.
Qualify the exact SKU and size across seams, closures, openings, fit states, distances, orientations, and polarizations. Performance is never inherited from a fabric swatch.
Retest after a named laundering protocol plus abrasion, flex, stretch, wet or humid state, and closure cycling where relevant. Publish failures and condition-dependent results.
Freeze the bill of materials and release sampled lots against a lower specification limit. Link SKU, lot, method, band, condition, sample count, minimum, uncertainty, and report ID.
HF/NFC at 13.56 MHz and regional UHF RFID at 860–960 MHz need separate reader, tag, distance, orientation, opening, and condition protocols. Coupon dB does not prove a blocked transaction.
SCREENEDResearch-stage materialInternal evidence; no product-performance claim
QUALIFIEDExact SKU characterizedIndependent band, method, state, and uncertainty
BATCHEDProduction lot releasedFrozen construction with a traceable test passport
Finished clothing changes the answer
Across 1–18 GHz, distance, angle, measurement point, seams, and openings materially changed results; strong flat fabric did not translate proportionally to clothing.
Primary paperCleaning can reduce shielding
Silver-coated polyamide knit measured from 0.9–2.4 GHz lost shielding effectiveness after repeated care, especially wet cleaning.
Primary paperPores and construction matter
Tests at 6.5–11 GHz found strong results in dense metallic-coated fabrics while larger pores sharply reduced shielding.
Primary paperWash + polarization move results
Textile construction, polarization, and repeated washing changed shielding performance—another reason to qualify the exact production state.
Primary paperThese papers did not test a NULLRADIAL material or product. ISO/IEC 17025 accredits a laboratory for methods within its listed scope; it does not certify a product. Product certification requires a defined scheme and an ISO/IEC 17065 certification body. Bio-inspired geometry and quantum science remain research horizons—not proof of shielding, health benefit, anonymity, or communications security.
PROTOCOL / RESERVE access
HIGHER STAKES.
HARDER PROOF.
NULLRADIAL / PROTOCOL begins with the system that matters: the named camera, model, signal band, material, scene, and success threshold. We build the evaluation around that scope, maintain revision custody, document the complete result, and advance only what survives.
Authorized robustness research only. Not a product for avoiding identification or interfering with lawful security or safety systems.
Scope a Protocol program06 / Hard answers
What is the claim?
“AI cannot see this locked article under the named Test Card conditions.” The model build, threshold, camera, distance, light, motion, construction, sample count, uncertainty, and failures travel with the sentence.
What does “locked” mean?
Every tested master has a revision and cryptographic hash, so the surface that earns a result is the surface that ships.
Why Protocol?
Higher-stakes optical, infrared, RF, and multimodal programs deserve a named scope, controlled custody, and a complete report.
Real-system verified?
Not yet. R1 and S4 are digital-only internal screens; S4 qualified zero candidates. A physical claim requires the exact product revision and material, model build, weights, capture device, conditions, controls, thresholds, sample count, uncertainty, and independent report.
What am I reserving?
A no-charge place in the founding queue and your product preference. No card or purchase obligation today.
When does payment open?
After physical samples pass, exact materials and dates are disclosed, and you actively approve the order window.
